The climate is always fine in the proofline spiral fermenter. Extra gentle treatment of the product with perfectly coordinated resting, fermenting and cooling phases in combination with the advantages of a continuously operating spiral system.
As single or double tower, upwards and downwards conveying, with four layout options and three system diameters; placed on the factory floor, foundation, or a subframe, proofline fulfills nearly all requirements in terms of capacity and integration processing and building. Depending on the variety of product and processing, proofline can work with a proofing zone, with a proofing and cooling zone or also can be configured as a three-zone proofing plant with relaxing, proofing and cooling zones. The relaxing zone can be
operated as a relaxing zone or as additional pre-proofing zone.
Wall and ceiling panels of the insulating enclosure have a stainless steel interior and the floor is designed as a welded stainless steel tray with defined drains. Access by means of an insulated stainless steel door with contact switch.Designed for industrial multi-shift applications, the highest degree of reliability is guaranteed by the smooth belt guidance via drum and frequency-controlled main drive and overdrive motors, the use of high quality components, and the minimum of moving parts. The proofline offers state-of-the art PLC controls, several remote service and communication options, programming and saving of all product and system parameters in recipes, plus elaborate visualization (3D images of the system, temperature trends, etc.) on a colour touchscreen. proofline achieves extremely precise fermentation conditions with a continuous process of air dehumidification, humidification and heating with very low air speeds caused by a division of the total air flow into small streams of air; this in addition to air conveyance via frequency-controlled fans. The simple belt cleaning system, with a pump unit for increasing pressure generating foam can be progressively upgraded into an extended cleaning system or even further into a fully integrated cleaning system that cleans the entire interior in addition to the belt and the conveyor system.
With the loading conveyor for the transfer of products onto the already collapsed belt, which can be designed with up to four individually driven tracks as well as with individually driven transfer shafts, the proofline is particularly suitable for high-quality dough products. The proofline can be realised with numerous options such as an insulating enclosure with a stainless steel exterior or a fully welded insulating enclosure, ultrasonic or high pressure humidification; with integrated bypass, and performed in asymmetrical layouts – custom-designed to meet your needs.

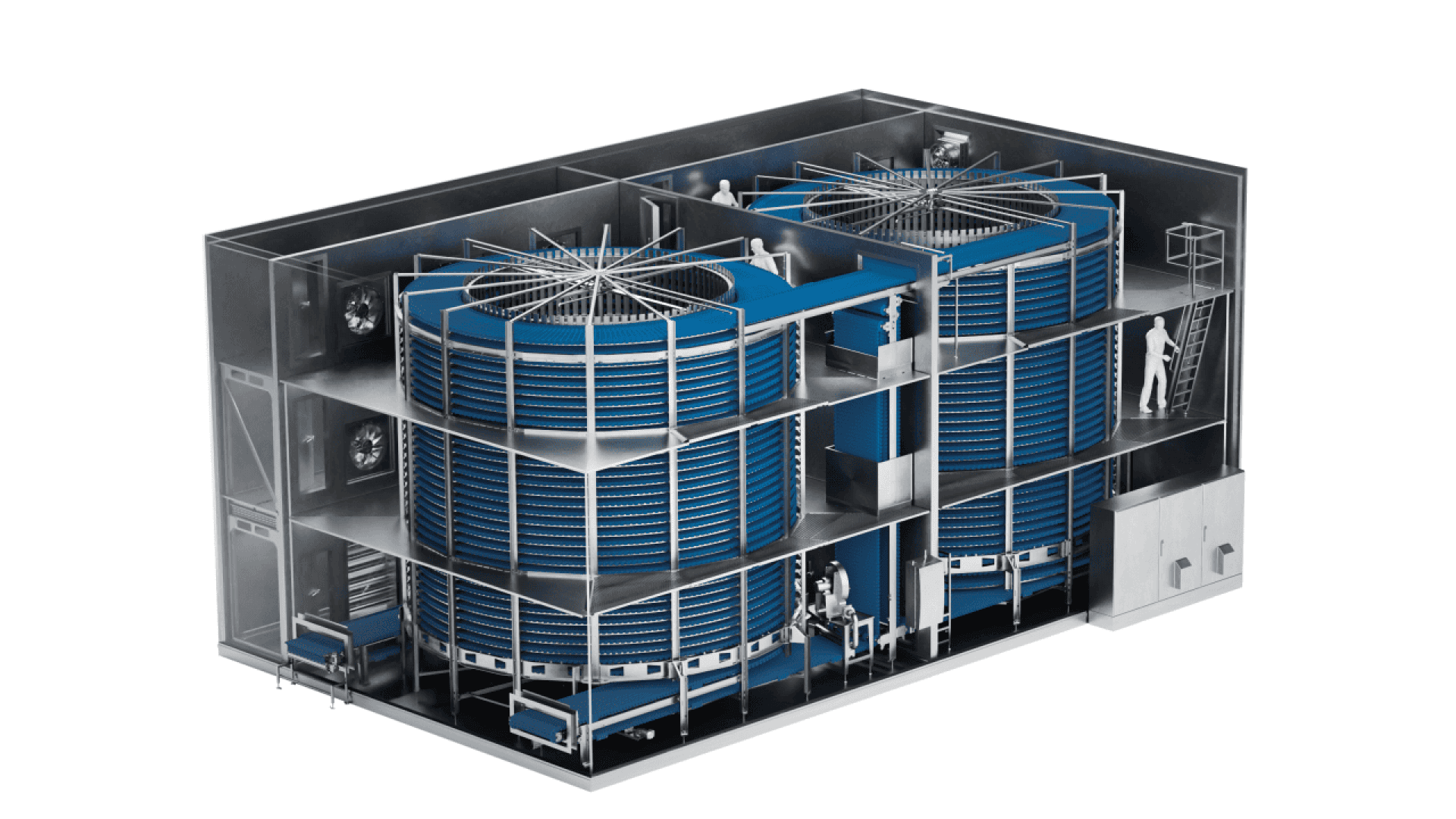

Heinen- proofline®- fermenting and cooling
If you would like to learn even more, we cordially invite you to our booth (Hall A1 - 171). We are looking forward to meeting you!
